Specifications | |
---|---|

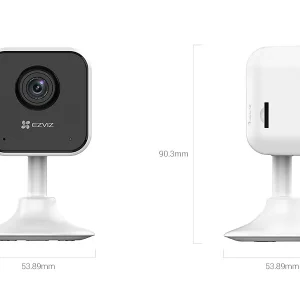

Model | CS-H1c |
Camera | |
Image Sensor | 1/3″ Progressive Scan CMOS |
Shutter Speed | Self-adaptive shutter |
Lens | 2.4mm, view angle:108°(Diagonal), 91° (Horizontal), 50°(Vertical) |
Minimum Illumination | 0.5 Lux @(F2.2, AGC ON), 0.1 Lux with IR |
Lens Mount | M12 |
Day & Night | IR-cut filter with auto-switching |
DNR | 3D DNR |
IR Night Vision Distance | Up to 32 ft / 10 m |
Video & Audio | |
Max. Resolution | 1920 × 1080 |
Frame Rate | Max: 25 fps; Self-Adaptive during network transmission |
Video Compression | H.264 |
H.264 Type | Main Profile |
Video Bit Rate | HD; Standard. Adaptive bit rate. |
Audio Bit Rate | Self-Adaptive |
Max. Bitrate | 1 Mbps |
Function | |
Smart Alert | Motion detection |
Two-way Talk | Supports |
General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
Network | |
Standard | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth | Supports 20 MHz |
Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
Wi-Fi Pairing | AP pairing |
Protocol | EZVIZ Cloud Proprietary Protocol |
Interface Protocol | EZVIZ Cloud Proprietary Protocol |
Storage | |
Local Storage | Supports microSD card (Up to 512 GB) |
Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
